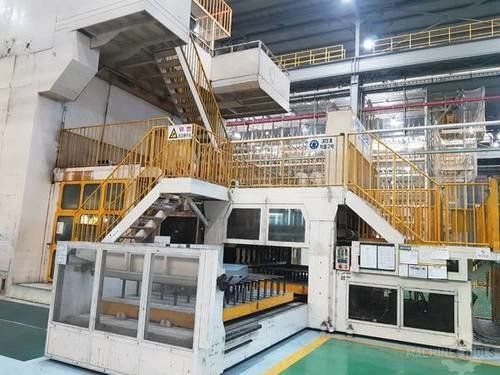

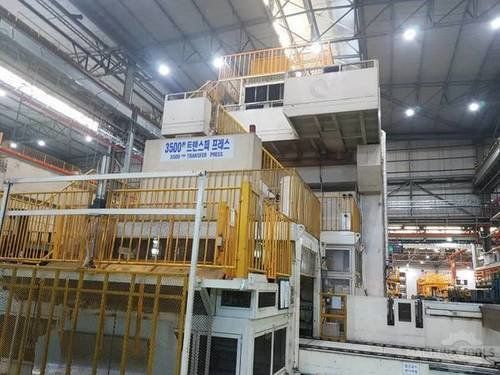

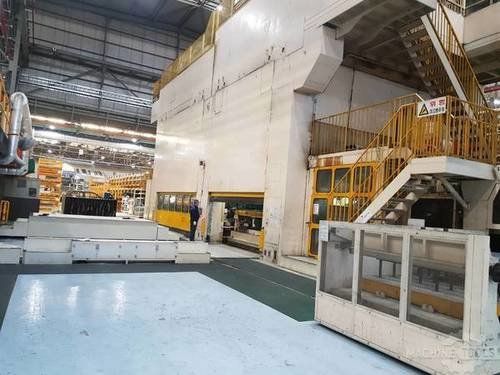

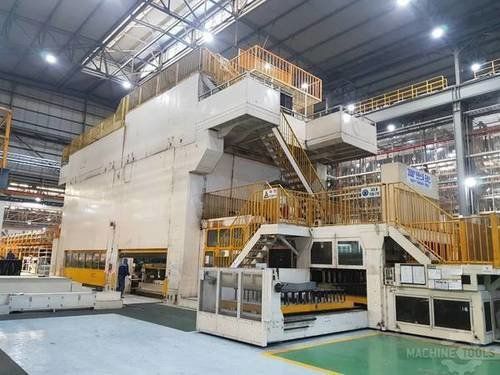

ID: 1003
Brand: Komatsu
Model: LE8T3500*05*210-MF*D
Type: Transfer Presses
Condition: Used — Excellent
Year: 1990
Serial #: 19T3097

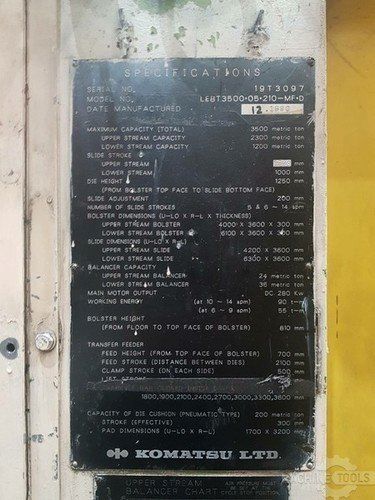

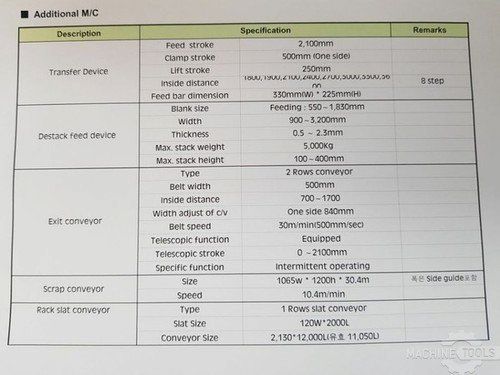

Specs
Tonnage: 3,500 t
Maximum capacity: 3500 ton
Slide stroke: upper stream 2020 mm, lower stream 1000 mm
Die height: 1250 mm
Slide adjustment: 200 mm
Number of slide strokes: 5-6 ~ 14 spm
Bolster dimensions (U-LO x R-L x thickness): upper stream bolster 4000 x 3600 x 300 mm, lower stream bolster 6300 x 3600 x 300 mm
Slide dimensions (U-LO x R-L): upper stream slide 4200 x 3600 mm, lower stream slide 6300 x 3600 mm
Main motor output DC: 280 KW
Bolster height: 810 mm
